3″ Tri-Clamp/ Tri Clover Dewaxing Columns
This is a

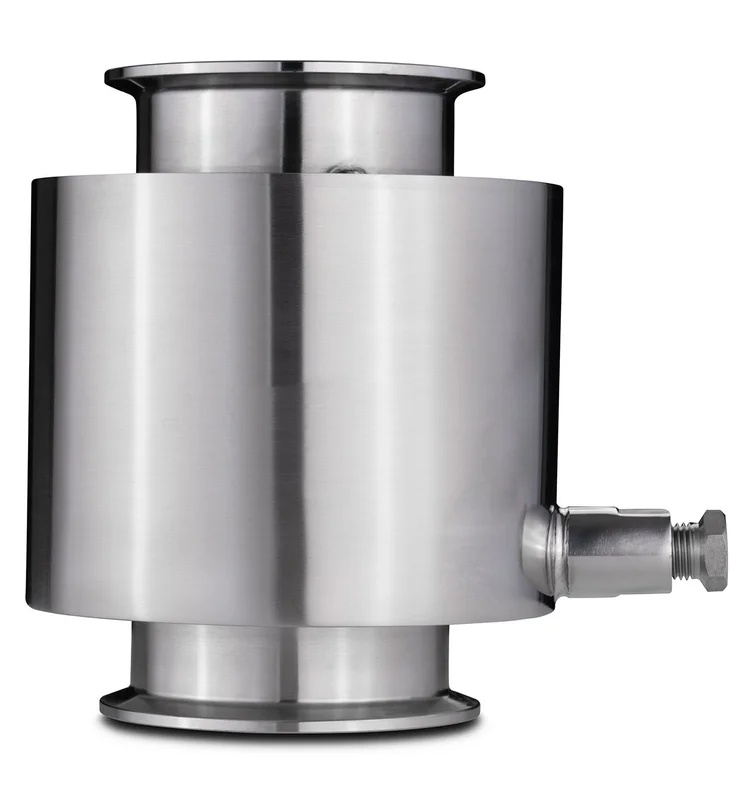

3″ Tri-Clamp BVV™ Tri-Clamp Dewaxing Spool. It is intended to have dry ice put into the sleeve to chill the material inside the column.
**Note: When selecting a Pipe Hanger choose the size that correlates to the Sleeve OD NOT Spool OD
Sizes Available:
- 3″ x 6″ Tri-Clamp Dewaxer Column
- 3″ x 8″ Tri-Clamp Dewaxer Column
- 3″ x 12″ Tri-Clamp Dewaxer Column
- 3″ x 18″ Tri-Clamp Dewaxer Column
- 3″ x 24″ Tri-Clamp Dewaxer Column
- 3″ x 36″ Tri-Clamp Dewaxer Column
Specifications:
| Tri-Clamp Size | 3″ |
| Material | 304 Stainless Steel |
| Standard | 3A High Polish |
| Sleeve OD | 5.000″ |
| Spool ID | 2.870″ |
| Spool OD | 3.000″ |
| Flange OD | 3.579″ |
| Bead Center | 3.281″ |
| Drain Port | 1/4″-18 FNPT (Drain Plug Included) |
- OD = Outer Dimension
- ID = Inner Dimension
Disclaimer to Customer: User assumes all responsibility and risks of the system for all Stainless Steel Parts bought separately to piece together a Closed Loop, Closed Column, or Open Blast Extractors. They
DO NOT come with a standard 1 year system warranty, customer assistance on how to run your system, technical help or a guarantee of the system being tested.
BVV™ 3″ Tri-Clamp Dewaxer Columns – Drawing
