300L 304SS Jacketed Collection and Storage Vessel with 12″ Tri-Clamp/ Tri Clover Port and Locking Casters

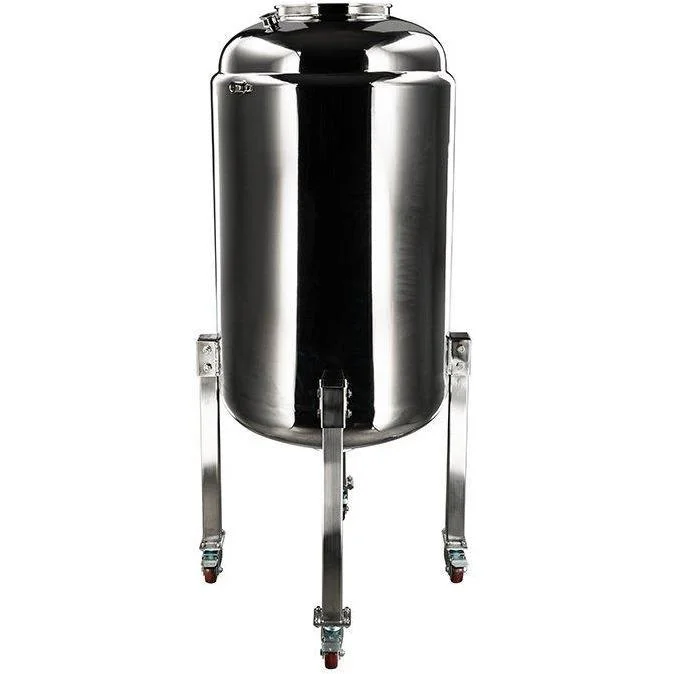

This massive 304 Stainless Steel Jacketed vessel can hold up to 300L of water (~80 gallons) and has a 12″ Tri-Clamp port, (2) 1.5″ Tri-Clamp ports, and (1) 1/2″ FNPT port on the top and a 6″ Tri-Clamp port on the bottom of the vessel. The outer jacket has 2x 1/2″ FNPT ports to allow the circulation of heat transfer fluids and can also be used a vacuum jacket and can hold 43L or 11.5 gallons of fluid in the outer jacket. This unit also features 4 stainless steel legs with locking casters to allow the vessel to be moved around easily. (Note: this unit comes bare and does not include any fittings besides the legs with casters.)
| Specifications | |
| Material | 304 Stainless Steel |
| Overall Dimensions | 65″ Tall x 30″ Wide |
| Pressure Rating | 100 PSI MAX |
| Connection Type(s): | (1) 12″ Tri-Clamp Top Port |
| (2) 1.5″ Tri-Clamp Top Ports | |
| (1) 6″ Tri-Clamp Bottom Port | |
| (2) 1/2″ FNPTOuter Jacket Ports |
***Note: This item will ship via freight ONLY.
