Description

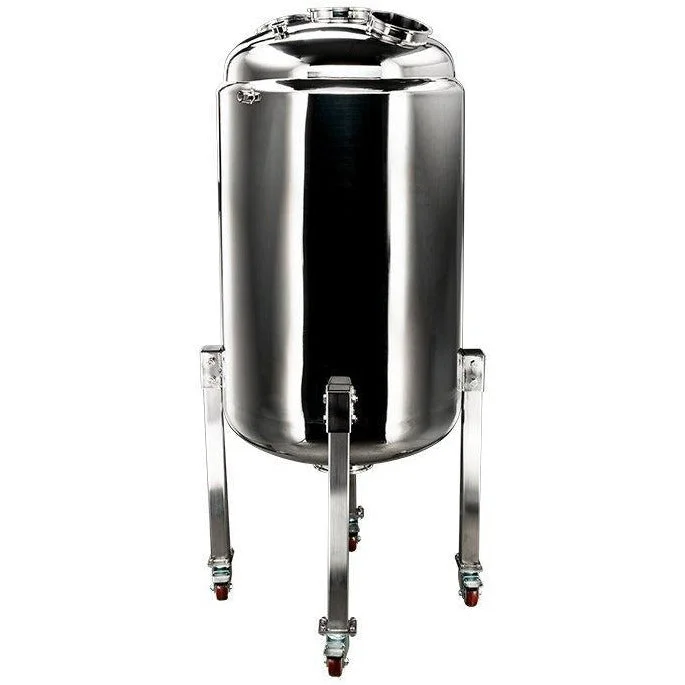

300L 304SS Jacketed Collection and Storage Vessel with Locking Casters
This massive 304 Stainless Steel Jacketed vessel can hold up to 300L of water (~80 gallons) and has a (3) 6″ Tri-Clamp, (2) 1.5″ Tri-Clamp/ Tri Clover and (1) 1/2″ FNPT port on the top and a 6″ Tri-Clamp port on the bottom of the vessel. The outer jacket has 2x 1/2″ FNPT ports to allow the circulation of heat transfer fluids and can also be used a vacuum jacket and can hold 43L or 11.5 gallons of fluid in the outer jacket. This unit also features 4 stainless steel legs with locking casters to allow the vessel to be moved around easily. (Note: this unit comes bare and does not include any fittings besides the legs with casters.)
| Specifications | |
| Material | 304 Stainless Steel |
| Pressure Rating | 100 PSI MAX |
| Connection Type(s): | (3) 6″ Tri-Clamp Top Ports |
| (2) 1.5″ Tri-Clamp Top Ports | |
| (1) 6″ Tri-Clamp Bottom Port | |
| (2) 1/2″ FNPT Outer Jacket Ports | |
| (1) 1/2″ FNPT Top Port |
***Note: This item will ship via freight ONLY.
Reviews
There are no reviews yet.
