Description

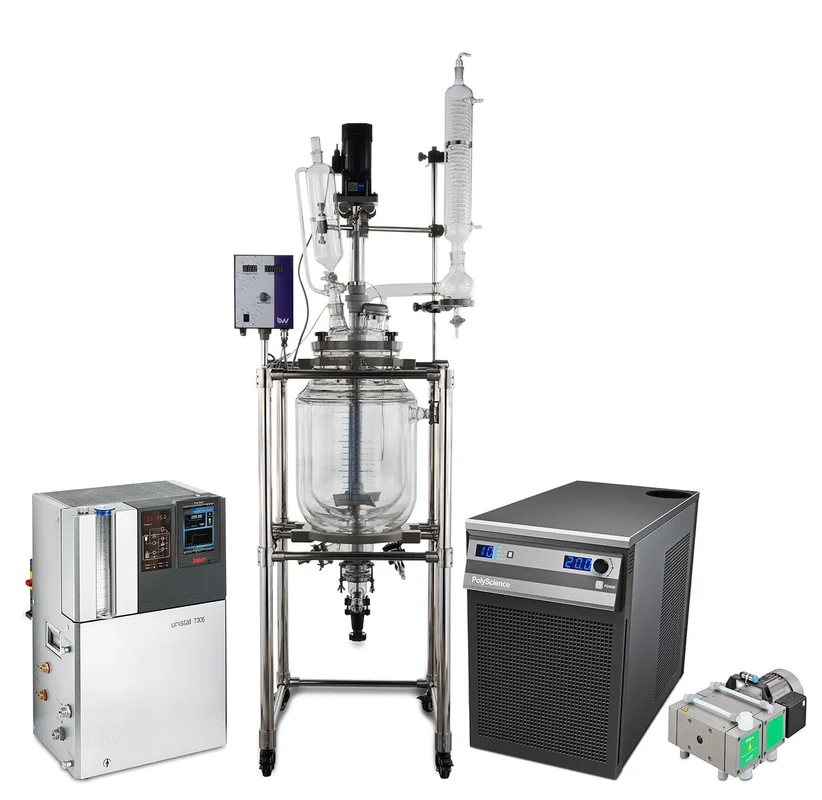

50L Turnkey Reactor Kit
The BVV 50L Double Jacketed Glass Reactor Kit is the ideal solution for small to medium-sized solvent recovery and decarboxylation applications. This kit includes everything to get you up and running including a Single 50L triple-layer Glass Reactor with Condenser, either a BVV 19L Heated circulator capable of heating to 220C or a UL-listed Huber T305 Capable of heating up to 300C, a 1HP Polyscience 6160T for chilling the condenser, a Welch BTpro100 for vacuum, 25ft of 3/8″ Gum rubber tubing for vacuum connections, 20ft of reinforced PVC hose for the chiller, 1/2″ Stainless Steel JIC Hoses for the heater,5 Gallons of Therminol Heat transfer fluid and 5 Gallons of Propylene glycol.
50L Double Jacketed Glass Reactor Specifications
- Glass Material: GG-17 High Borosilicate Glass
- Internal Volume: 50L
- 10.5L Jacket Capacity
- Shelf Material: Aluminum Alloy
- Homogenizer Power: 110V/60Hz
- Homogenizer Speed: 0-400 RPM
- Digital Homogenizer Control
- Digital temperature probe readout included
- Double Jacket
- 3/4″ Jacket Connections
- 1/4″ and 3/8″ Vacuum Connections
- Length: 24 in.
- Width: 30 in.
- Height: 90 in.
Polyscience 6100 1 HP Chiller Specifications
- 6100 Series 1 HP Chiller with Turbine Pump, 100psi; 13.2l/min
- Display: LED
- Working Temperature Range C: -10 to 40
- Temperature Stability: +/-0.1
- Temperature Calibration Capability: 1-point
- Pump Type: Turbine
- Working Temperature Range F: 14 to 104
- Working Temperature Range C: -10 to 40
- Reservoir Capacity (gallons): 1.11
- Reservoir Capacity (liters): 4.2
- Reservoir Cover: Screw-on cap
- Cleanable Air Filter: Yes
- Cleanable Fluid Filter: Yes
- Temperature Stability F: +/-0.2
- Temperature Stability C: +/-0.1
- Display: LED
- Display Resolution (Read): 0.1
- Pump Type: Turbine
- Process Connections: 1/2″ FNPT
- Over-Temperature Protection / Failsafe Heater Control: Yes
- Reservoir Liquid Level Indicator: Yes
- Reservoir Drain: Yes
- Cool Command Refrigeration Technology: Yes
- WhisperCool Environmental Control Technology: Yes
- Maximum Ambient Temperature F: 95
- Maximum Ambient Temperature C: 35
- Overall Dimensions (LxWxH inches): 27.6 x 14.5 x 22.6
- Overall Dimensions (LxWxH cm): 70 x 36.8 x 57.5
- Compressor Size (HP): 1
- Refrigerant: R134a
- Shipping Weight (pounds): 199
- Shipping Weight (kilograms): 90
Welch BTpro100 Specifications
| Model | BTpro100 |
|---|---|
| Free Air Displacement@60Hz, lpm(CFM) |
100(3.5) |
| Ultimate Vacuum Pressure, Torr | 6 |
| Maximum Vacuum, in. Hg | 29.7 |
| Horsepower, HP (watts) | 0.5(390) |
| Built-in adjustable vacuum | – |
| Gas Ballast | Yes |
| Head Material | PTFE |
| Diaphragm | PTFE |
| Inlet/outlet Connection |
NW16 flange1 |
| Agency (National Recognized Lab) | cUL |
| Weight, lbs (kg) | 40.3(18.3) |
| Overall Dimensions
LxWxH in.(cm) |
9x15x7
(23x38x18) |
| Shipping Weight, lbs(kg) | 48.5 (22) |
| Shipping Carton Dimensions
LxWxH in.(cm) |
18.9×12.6×11.8
(48x32x30) |
HUBER T305 Specifications
| General Information & Temperature Controller | |
|---|---|
| Temperature range | 65…300 °C |
| Temperature stability | ±0,02 °C |
| Temperature control | TAC, self-optimizing (True Adaptive Control) |
| Controller | Pilot ONE (E-grade “Basic”) |
| Safety class | III / FL |
| Protection class | IP20 |
| Dimensions (W x D x H) | 425 x 250 x 631 mm | 16.73 x 9.84 x 24.84 inches |
| Weight | 37 kg | 81.59 pounds |
| Heating / Cooling Capacity | |
| Heating capacity | 4,8 kW |
| Circulation Pump | |
| Pressure pump max. | 45 lpm ; 0.9 bar | 11.89 gpm ; 13.05 psi |
| Pump connection | M24x1,5 AG male |
| Permissible viscosity | 50 mm²/s |
| Connections | |
| Pt100 connection | Pt100 |
| Analogue input | via optional Com.G@te |
| Analogue output | via optional Com.G@te |
| Digital interface | RS232, Ethernet, USB Device, USB Host |
| Operating Data | |
| Old sku | 1003.0022.01 |
| Permissible ambient temp. | 5 to 40 °C |
| Filling volume min. | 1.45 Liters | 0.38 gal |
| Volume of expansion | 2.8 Liters | 0.74 gal |
| Power supply | 208V 3~ 60Hz |
| Current max. | 15 A |
| Fusing | 15,5 A |
