Description

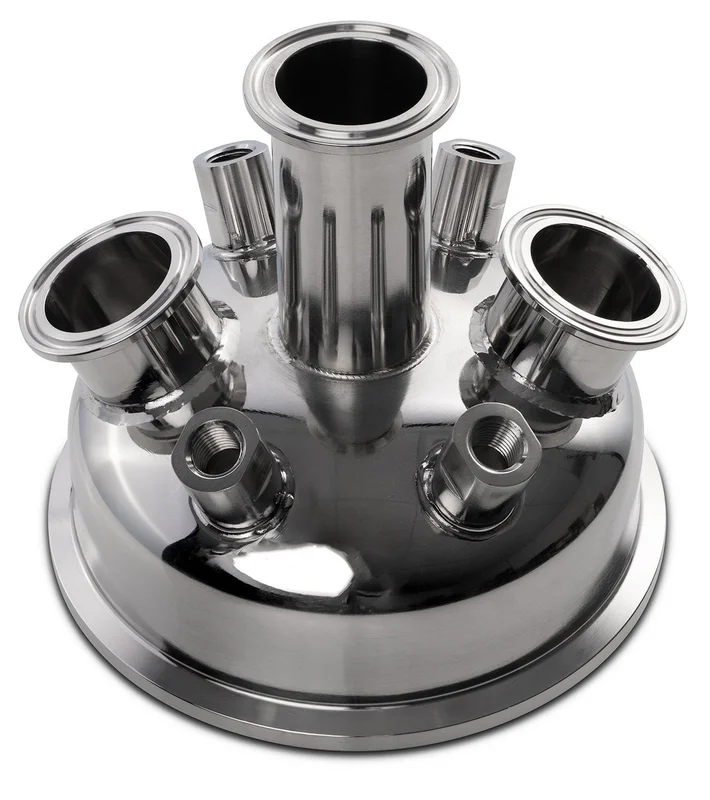

6″ Tri-Clamp Tri Clover x (3) 1.5″ TriClamp x (4) FNPT Hemispherical Lid
This End Cap comes with Four FNPT Threaded connection and Three 1.5″ Tri-Clamp ferrule welded to the end cap with a sanitary weld with a 3″ Tube Extension Below the middle port on the lid. These allow the user to adapt and connect a threaded connection to the NPT ports and three 1.5″ Tri-Clamp Connections on a 6″ Hemispherical Tri-Clamp lid. With this versatile Tri-Clamp Extractor Lid, users can quickly create a leak-proof connection allowing easy assembly or disassembly for routine maintenance and inspection.
| Specification | ||
|---|---|---|
| SKU: | 600HEL | 600HEL-V2 |
| Material: | 304 Stainless Steel | 304 Stainless Steel |
| Connection Types: | 6″ Tri Clamp | |
| 3x 1.5″ Tri Clamp (Tube Extension Below Center Port) | ||
| 4x 1/4″ FNPT | 2x 1/4″ FNPT | |
| – | 2x 1/2″ FNPT | |
| Standard: | 3A |
BVV™ 6″ Tri-Clamp x (3) 1.5″ TriClamp x (4) 1/4″ FNPT Hemispherical Lid – Drawing
BVV™ 6″ Tri-Clamp x (3) 1.5″ TriClamp x (4) 1/4″ FNPT Hemispherical Lid – End Cap Chart
