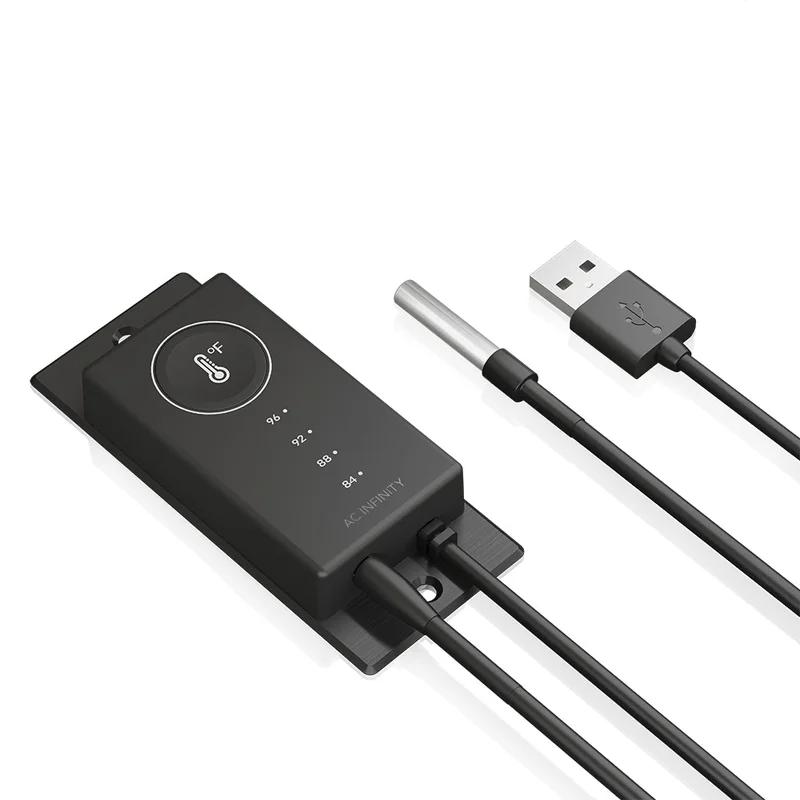

AC Infinity CONTROLLER 1 Pre-Set Thermal Trigger for USB Fans

Original price was: $38.99.Current price is: $11.69.

SKU: 7909459820786 Category:

Description

  • Preset temperature trigger with corded thermal probe, for USB fans and devices.
  • Also controls up to six AC Infinity Cabinet and USB Fans, see below for compatibility.
  • Programming includes four pre-set temperature triggers as well as an ON and OFF mode.
  • Features a surface mount design, with a 6-ft precision waterproof temperature probe.
  • Can be powered by USB or Outlet (USB wall adapter not included)
  • Product : The Controller 1 is designed to provide temperature trigger functionality to USB fans and devices, including AC Infinity AIRPLATE Series cabinet fans and MULTIFAN Series component fans. The unit measures 3.2 by 1.4 by 0.5 inches. It features an aluminum back-plate which can be surface mounted onto wall panels and cabinets. Includes a 6-foot precision thermal probe that is water resistant. Complete kit includes thermal trigger unit, thermal probe, mounting screws, and instruction manual.
  • Programming: The controller features four pre-set temperature triggers as well as an ON and OFF mode. The four temperature triggers are 84 degrees F, 88 degrees F, 92 degrees F, and 96 degrees F. Also includes a 4 degrees F buffer to prevent fans from turning on and off too quickly due to small fluctuations in temperature.
  • Compatibility: The Controller 1 can power up to 10 watts worth of USB devices and fans, including AC Infinity AIRPLATE and MULTIFAN Series fans. This is approximately six fans but please note that some models contains more than one fan. For example, dual fan systems such as the AIRPLATE S7 or MULTIFAN S5 contains two fans. The controller would only be able to power up to three of these models for a total of six fans. The controller can also utilize the USB wall adapter that is included with AIRPLATE S-series fans to be powered through an outlet.
    • Specifications
  • Product Identification
  • Manufacturer: AC Infinity Inc.
  • Product Name: Pre-Set Thermal Trigger
  • Product Model: AC-PCA1
  • UPC Code: 819137020351
  • Product and Mounting Dimensions
  • Total Dimensions: 3.25 x 1.4 x 0.5 in. (8.3 x 3.6 x 1.3 cm)
  • Backplate Dimensions: 3.25 x 1.4 in. (8.3 x 3.6 cm)
  • Hole to Hole Distance: 2.87 in. (7.3 cm)
  • Screw Hole Diameter: 0.119 in (0.3 cm)
  • Cord Length: 72 in. (6 feet)
  • Thermal Probe Length: 72 in. (6 feet)
  • Maximum Fans Controlled: 6
  • Max Power Supported: 10 W
  • Programming Temperatures: 32 to 140 degrees F
  • Operating Voltage: 5V DC
  • Power: 10 W
  • Current: 2 A
  • USB Outlet Input: 5V DC
  • Operating Humidity: 35 to 85% RH
    • Data Sheets
  • Download the user manual: here
