ALIEN Hydroponics V-SYSTEM 15 Pot 3 Row Kit
Sale!
2026_06_07_3213946

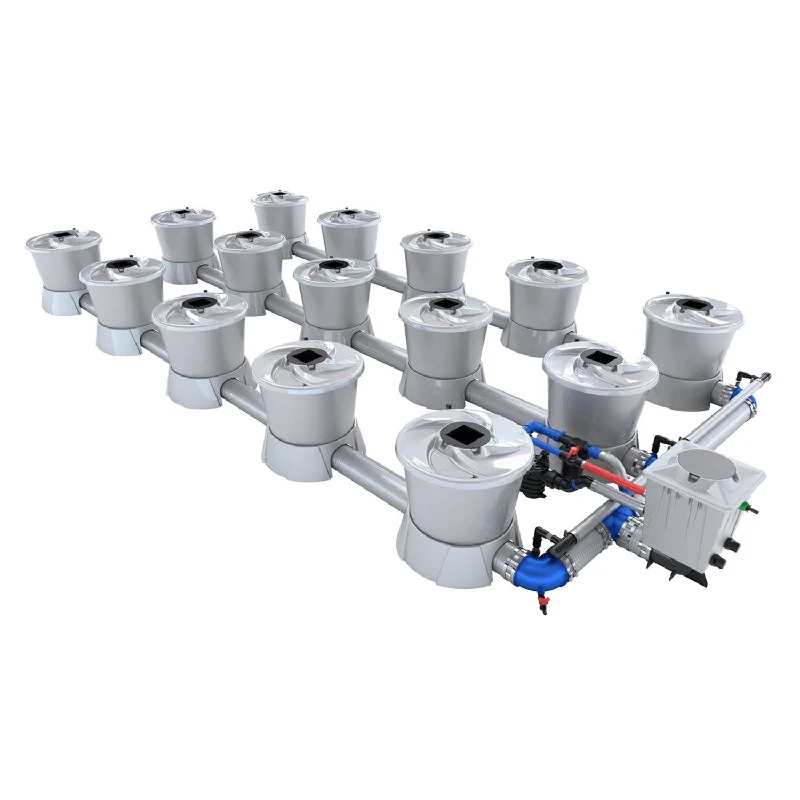

ALIEN Hydroponics V-SYSTEM 15 Pot 3 Row Kit

Original price was: $2,899.00.Current price is: $298.98.

SKU: 7924081524772 Category:

Description

  • Key V-SYSTEM Benefits: This system offers direct nutrient distribution and maximum oxygen saturation. No air pump is needed, and no heat is transferred. Vortex fluid motion is a key benefit of the system, and it is naturally aspirated. The V-SYSTEM supports large plants, and the pots and system completely drains. This helps prevent root clogging. It’s made in Britain.
  • Key V-SYSTEM Features: The V-SYSTEM features a 15 gallon (58L) V-POT, and a water fill line for ease of use. It also includes total-drainage bases and Venturi injectors. Inspection covers are incorporated for easy system checks and it houses 5″ spiral tubing. The system uses 5″ Dual-Flow™ fittings for optimal flow. Integrated filtration ensures cleanliness of the system. T304 Stainless clamps secure the system and it includes heavy-duty components for longevity. It uses push-fit feed connections for ease of use. The system is powered by a JET-STREAM® Vortex™ pump.
    • Specifications
  • Product Name: V-SYSTEM 15 Pot 3 Row Kit
  • Technical Information
  • Number of pots: 15
  • Number of rows: 3
  • Kit total fluid volume: 244.6 gallons (926 L)
  • Minimum assembled size (can space pots more widely for a larger footprint):
  • Length: 10′ 2.4″ (122.4 inches / 3110 mm)
  • Width: 5′ 9.3″ (69.3 inches / 1760 mm)
  • Water Pump Included with the Kit:
  • Model: V-SYSTEM Vortex Water Pump 750W 120V 15000 l/h
  • Wattage: 750 watts
  • Flow Rate: 3963 gal/hr (15000 L/hr)
  • Recommended water chiller minimum capacity: 396 gallons (1500 L)
    • Data Sheet
  • Download the instruction manual: here
  • Download the technical drawing: here
    • Kit Contents
  • The V-SYSTEM 15 Pot 3 Row Kit Includes:
  • 1 x V-SYSTEM Vortex Water Pump 750W 120V 15000 l/h
  • 15 x V-Pot 58L
  • 15 x V-Pot Base
  • 15 x V-Pot Lid
  • 15 x V-Pot Lid Inspection Cover
  • 15 x Square Net Pot
  • 15 x V-Pot Clip
  • 15 x Air Filter for V-SYSTEM Venturi, 6mm
  • 15 x Silencer for Venturi
  • 15 x Venturi Fitting
  • 15 x Venturi Air Inlet Pipe 6mm Blue (2X 4″)
  • 15 x Venturi Inlet Fitting for 22mm Pipe
  • 16 x Nut 5″
  • 16 x Washer 5″ Green Silicone
  • 38 x 5″ Stainless Steel Clamp
  • 1 x Distribution Tee 40mm
  • 3 x DM Push-Fit Elbow 22-15mm V-SYSTEM
  • 3 x DM Push-Fit Elbow 22mm V-SYSTEM
  • 12 x DM Push-Fit Tee 22-15mm V-SYSTEM
  • 1 x 1/2″ Drain Cap Fitting
  • 1 x Drain Tap 1/2″-16mm Barb
  • 2 x Elbow 5″ Barbed with Drain Point
  • 4 x Elbow 5″ Threaded Dual-Flow
  • 1 x Filter Manifold Complete 40mm
  • 1 x Float Valve
  • 1 x V-SYSTEM Header Pot 20L 40mm
  • 1 x Silver Lid
  • 1 x Header Pot Blank
  • 1 x Hosetail 16mm-3/4″ Female Green
  • 15 x Pipe 22mm Gray Rigid 1 Meter – Venturi Feed
  • 1 x Pipe 32mm Red 1 Meter Spiral
  • 4 x Pipe 40mm Silver 1 Meter Spiral
  • 16 x Pipe 5″ Silver Spiral 80cm
  • 2 x Tee 5″ Barbed
  • 12 x Tee Threaded 5″ Dual-Flow
  • 2 x Threaded Tank Connector 1″
  • 1 x Vortex Pump Inlet Manifold 40mm Short
  • 2 x 1″ Cap for Chiller Connections
  • 1 x Tank Connector Straight 32mm
  • 1 x Tank Connector Straight 40mm
  • 1 x Terminal Manifold Left 40mm
  • 1 x Terminal Manifold Center 40mm
  • 1 x Terminal Manifold Right 40mm
  • 36 x 22mm Insert for 22mm Rigid Pipe
  • 2 x Clamp Size 2
  • 10 x Clamp Size 3
  • 1 x 8mm Screwdriver for 5″ Clamp
  • 1 x Wrench 5″
  • 1 x Wrench for Float Valve
  • 1 x 8mm Socket for 5″ Clamp
  • 1 x Pipe Cutter 50mm
  • 4 x Silicone Grease – Food Grade
