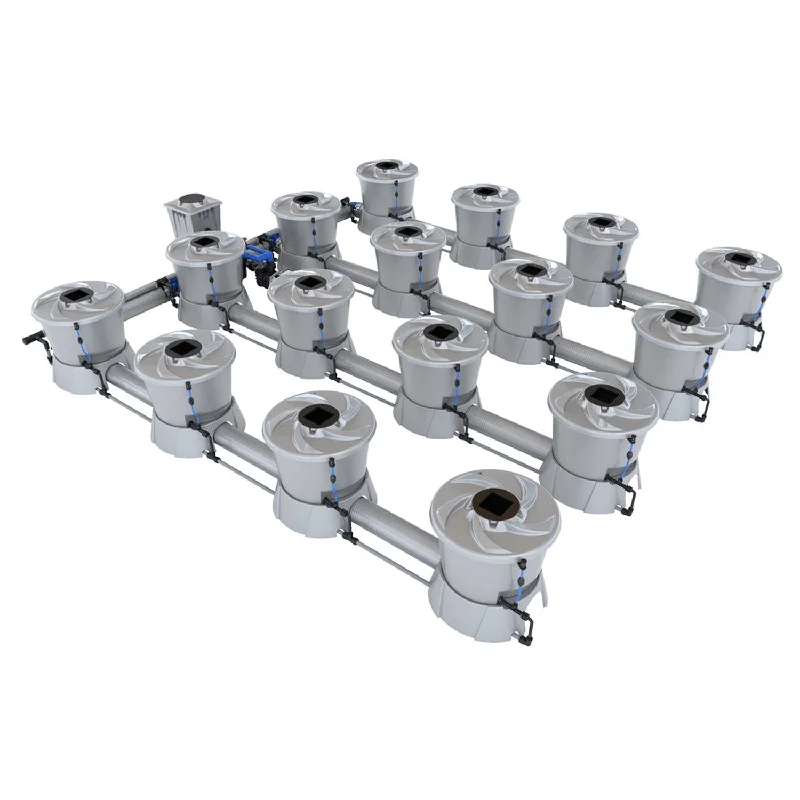

ALIEN Hydroponics V-SYSTEM 16 Pot 4 Row Kit
Sale!
2026_06_07_3213902

ALIEN Hydroponics V-SYSTEM 16 Pot 4 Row Kit

Original price was: $2,964.00.Current price is: $298.98.

SKU: 7924080771108 Category:

Description

  • Direct nutrient distribution: The V-SYSTEM provides direct distribution of nutrients to plants.
  • Maximum oxygen saturation: The system ensures maximum oxygen saturation for the plants.
  • No air pump needed: There’s no need for an additional air pump with this system.
  • No heat transferred: The V-SYSTEM doesn’t transfer any heat, ensuring a stable environment for your plants.
  • Vortex fluid motion: With its unique design, the system creates a vortex motion for fluid.
  • Key V-SYSTEM Features:
  • 15 gallon (58L) V-POT: This system comes with a 15-gallon pot for optimal plant growth.
  • Water fill line: For easy water filling, a fill line is included.
  • Total-drainage bases: The bases of this system have been designed for total drainage.
  • Venturi injectors: V-SYSTEM features Venturi injectors for efficient operation.
  • 5″ spiral tubing: The system includes a 5″ spiral tubing for assembly.
  • Integrated filtration: The V-SYSTEM is fitted with integrated filters for clean operation.
  • T304 Stainless clamps: The set comes with durable T304 stainless clamps.
  • Heavy-duty components: All components of the V-SYSTEM are heavy-duty and designed to last.
  • Push-fit feed connections: Feed connections in the system are push-fit for easy assembly and efficient flow.
  • JET-STREAM® Vortex™ pump: The system comes with a powerful JET-STREAM® Vortex™ pump to ensure efficient nutrient and water distribution.
    • Specifications
  • Product Name: V-SYSTEM 16 Pot 4 Row Kit
  • Technical Information
  • Number of pots: 16
  • Number of rows: 4
  • Kit total fluid volume: 261.5 gallons (990 L)
  • Minimum assembled size (can space pots more widely for a larger footprint):
  • Length: 8′ 3.6″ (99.6 inches / 2530 mm)
  • Width: 7′ 7.3″ (91.3 inches / 2320 mm)
  • Water Pump Included with the Kit:
  • Model: V-SYSTEM Vortex Water Pump 550W 120V 13800 l/h
  • Wattage: 550 watts
  • Flow Rate: 3646 gal/hr (13800 L/hr)
  • Recommended water chiller minimum capacity: 396 gallons (1500 L)
    • Data Sheet
  • Download the instruction manual: here
  • Download the technical drawing: here
    • Kit Contents
  • The V-SYSTEM 16 Pot 4 Row Kit Includes:
  • 1 x V-SYSTEM Vortex Water Pump 550W 120V 13800 l/h
  • 16 x V-Pot 58L
  • 16 x V-Pot Base
  • 16 x V-Pot Lid
  • 16 x V-Pot Lid Inspection Cover
  • 16 x Square Net Pot
  • 16 x V-Pot Clip
  • 16 x Air Filter for V-SYSTEM Venturi, 6mm
  • 16 x Silencer for Venturi
  • 16 x Venturi Fitting
  • 16 x Venturi Air Inlet Pipe 6mm Blue (2X 4″)
  • 16 x Venturi Inlet Fitting for 22mm Pipe
  • 17 x Nut 5″
  • 17 x Washer 5″ Green Silicone
  • 42 x 5″ Stainless Steel Clamp
  • 1 x Distribution Tee 40mm
  • 4 x DM Push-Fit Elbow 22-15mm V-SYSTEM
  • 4 x DM Push-Fit Elbow 22mm V-SYSTEM
  • 12 x DM Push-Fit Tee 22-15mm V-SYSTEM
  • 1 x 1/2″ Drain Cap Fitting
  • 1 x Drain Tap 1/2″-16mm Barb
  • 2 x Elbow 5″ Barbed with Drain Point
  • 5 x Elbow 5″ Threaded Dual-Flow
  • 1 x Filter Manifold Complete 40mm
  • 1 x Float Valve
  • 1 x V-SYSTEM Header Pot 20L 40mm
  • 1 x Silver Lid
  • 1 x Header Pot Blank
  • 1 x Hosetail 16mm-3/4″ Female Green
  • 16 x Pipe 22mm Gray Rigid 1 Meter – Venturi Feed
  • 1 x Pipe 32mm Red 1 Meter Spiral
  • 5 x Pipe 40mm Silver 1 Meter Spiral
  • 18 x Pipe 5″ Silver Spiral 80cm
  • 3 x Tee 5″ Barbed
  • 12 x Tee Threaded 5″ Dual-Flow
  • 2 x Threaded Tank Connector 1″
  • 1 x Vortex Pump Inlet Manifold 40mm Short
  • 2 x 1″ Cap for Chiller Connections
  • 1 x Tank Connector Straight 32mm
  • 1 x Tank Connector Straight 40mm
  • 1 x Terminal Manifold Left 40mm
  • 2 x Terminal Manifold Center 40mm
  • 1 x Terminal Manifold Right 40mm
  • 40 x 22mm Insert for 22mm Rigid Pipe
  • 2 x Clamp Size 2
  • 12 x Clamp Size 3
  • 1 x 8mm Screwdriver for 5″ Clamp
  • 1 x Wrench 5″
  • 1 x Wrench for Float Valve
  • 1 x 8mm Socket for 5″ Clamp
  • 1 x Pipe Cutter 50mm
  • 4 x Silicone Grease – Food Grade
