Description

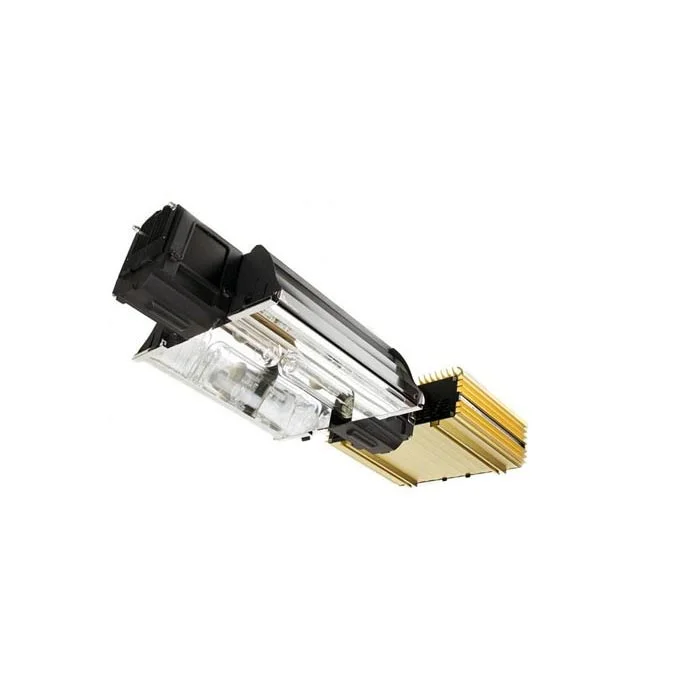

The Dimlux Expert Series 630W Dual CMH Grow Light is a complete 630W Dual Spectrum fixture. Comes with two Dimlux 315W CMH Lamps. Ultra High Frequency.
Features
A blinding intensity that’s clearly visible with the naked eye
Highly efficient – puts out 1.9 micromole (µmol) per watt
Extremely high PAR levels
Ultra 98 Miro Silver Reflector with Single Bounce Clear Sight (SBCS technology)
Adjustable output levels from 330WATT to 760WATT
The highest output (light) due to the overdrive boost UHF technology
The broadest dimming range of all digital ballasts
Soft-Start, Soft-Dim, Soft-Off function
Can be dimmed manually in 8 levels including the “off” position.
Fully Maxi Controller compatible -Can be variably dimmed and controlled
Extensive diagnostic LEDs
EOL function (End Of Life indication to replace lamps)
Safety features for preventing short circuits, open contact, high temperatures, too low voltage, too high voltage
Benefits
Excels as both supplementary and standalone lighting
SBCS -Single Bounce reflector ensures minimal light loss
Brighter, cleaner light for maximum yield
Less Heat – reduced risk of heat damage to plants
Reduce cooling costs
No loss of vertical space – ideal for rooms with 8 ft ceilings
Available Master Controller (sold separately) for dimming to sunrise/sunset and when temperature, humidity, VPD and CO2 levels vary
Overall much greater output and yield than any other lighting system
Ultra Optics 98 Reflector
This Ultra Optics 98 reflector was designed according to the Single Bounce Clear Sight (SBCS) principle and is equipped with Miro Silver mirrors.
This achieves the highest possible level of efficiency (98%) of any commercially available horticultural reflectors. The fixture is fitted with adjustable side reflectors for better overlapping and minimizing wall losses. Thanks to the open reflector design, the lamp is passively cooled, which improves both the service life and efficiency of the lamp. Warm air can be actively extracted through a 2 inch/50 mm connection on the reflector which significantly reduces the room temperature. In addition, separately available add-on reflectors can be installed to further reduce wall losses. The reflectors are replaceable.
To get the most from these units, we recommend using them in conjunction with the Dimlux Maxi Controller. You can then discard your contactor/timer setup and control up to 160 fixtures from a single point, scheduling on and off times and regulating output levels according to room temperature or VPD (Vapor Pressure Deficit) levels, so that plant temperatures always stay within range.
Dimlux Expert Series 630W Specifications –
Suitable for: 630WATT CDM Ceramic Metal Halide
Reflector: Ultra Optics Miro Silver with 98% Efficiency
Output: 330 – 760 Watt
Connection: 240V standard
Overdrive: 20%
Soft Start: Low inrush for use without Maxi Controller and Zero start (no inrush) for use with the Maxi Controller
Soft Dim: Yes
Dimming: 7 dim levels and off mode. Can be switched on and off via the Maxi Controller as well as Step-less dimming
Dim Levels: Soft Off, 330WATT, 410WATT, 490WATT, 560WATT, 630WATT, 690WATT, 760
Frequency: UHF Ultra High
Lamps: 2x Dimlux 315W CMH lamps
Power Consumption: @630WATT = 662WATT, 2.7A at 240V; @760WATT = 799WATT, 3.5A at 240V
Par / PPF: 1,411 µmol/s at 760WATT *1.9 µmol/Watt
Illumination Surface: @630WATT = min 0.84m² (9 ft²), max 2m² (21.5ft²) 4½ x 4½ Spread; @760WATT = min 1m² (10.7ft²), max. 2.4m² (25.8ft²) 5 x 5 Spread
Diagnostics: Red & green LED signals
Dimensions: 26 ½” x 10 ¾” x 5 ⅛” / 67.5cm x 27.5cm x 13cm
Weight: 13.88 lbs / 6.3 Kg
