Description
Reads and records pH and temperature. ORP readings are also available with the optional probe.
Records data onto standard SD memory cards (like a digital camera). When full, simply exchange SD cards for unlimited data storage. The removable SD card is easy to transport and insert into a computer’s memory card slot or SD card reader.
Uploads pre-formatted data to Excel, without the need for additional software and cables. Additional SD cards are readily available in a variety of memory sizes. Each data set includes pH, temperature, time and date. Features ATC (automatic temperature compensation) or manual temperature adjustment, automatic calibration recognition, min/max, auto power-off, low battery indicator and hold function.
This well-made unit is extremely accurate with fast response times and includes a fold-out easel back and a large easy-to-read backlit LCD. Comes ready to use in a soft carrying case with 6 AA batteries, instruction manual, and an SD card. Uses optional USB Power Cable (840058), or AC Adapter (840097). ATC temperature probe (840038) available as an optional accessory. Will accept any pH or ORP probe with a BNC connector.
Dimensions: 7″ × 2¾” × 1¾” (178 × 70 × 44 mm)
Weight: 1 lb. (0.45 kg)

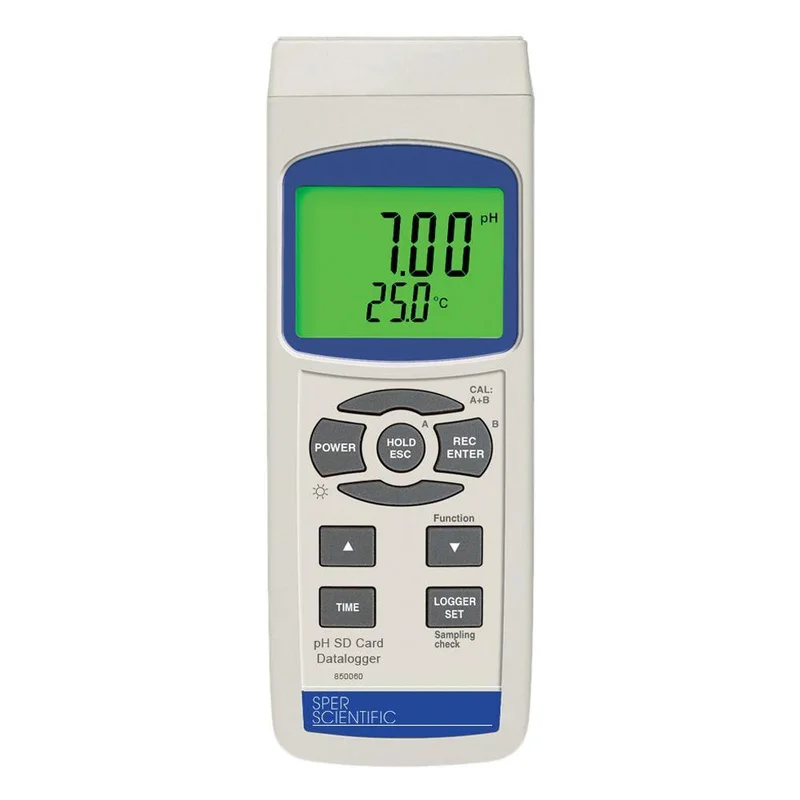

pH SD Card Logger Kit – Item #850061
Contains everything necessary for immediate field use:
- pH SD Card logger 850060
- Sealed epoxy body reference combination electrode with a BNC connector
- 2½-ft cable
- ATC temperature probe
- pH buffers 4, 7, 10 and deionized water
- Batteries and instructions
- Hard-shell foam-lined case
PROBE SOLD WITH KIT ONLY
Specifications
| Unit of Measure: | Range: | Resolution: | Accuracy: |
| pH: | 0 to 14 pH | 0.01 pH | ± 0.04 pH |
| mV: | -1999 to 1999 mV | 1 mV | ± 0.5%rdg +2 d |
| ORP: | -0 to 1999 mV |
Downloads
Instruction Manual
Product Brochure
Comparison Chart
Comparison Chart – ORP Meters
Comparison Chart – Ph Meters
