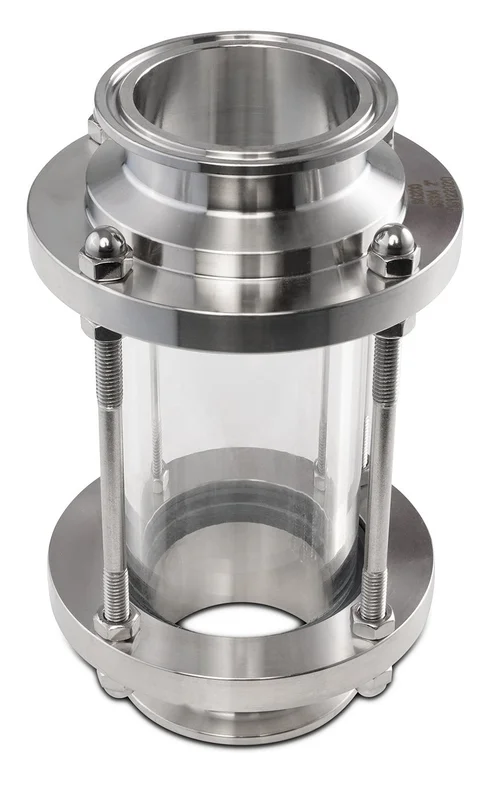

Tri-Clamp Sight Glass – Long
These tall sight glasses are a great additions closed-loop extraction system to view the liquefied solvent flowing through your system and see the color before the purging process is completed. The short sight glass also allows the user to add a viewing port to their system without adding a lot of additional height compared to a normal Tri-Clamp sight glass. Unlike many competitors, this sight glass is also nitrogen tested for leaks at 100 PSI before it is sent to the customer to ensure safe operation of their extraction system.
***Note: Does not include clamp or gasket.
Specifications:
- Sight Glass Material: 304 Stainless Steel
- Glass Material: Borosilicate
- Gasket Material: Buna
- Connection Type: Tri-Clamp x Tri-Clamp
Specifications for Caged Sight Glasses ONLY
| Product | Temperature Spec (Min – Max) | Max Pressure Rating | Gasket Material | Glass Material & Thickness |
|---|---|---|---|---|
| SG150-C | -20 – 100°C | 230 PSI | Butyronitrile | Pyrex Glass Ø45X7X100MM |
| SG200-C | -20 – 100°C | 200 PSI | Butyronitrile | Pyrex Glass Ø60X7X100MM |
| SG300-C | -20 – 100°C | 180 PSI | Butyronitrile | Pyrex Glass Ø85X8X80MM |
| SG400-C | -20 – 100°C | 165 PSI | Butyronitrile | Pyrex Glass Ø119X8X80 |
| SG600-C | -20 – 100°C | 150 PSI | Butyronitrile | Pyrex Glass Ø164X8X87 |
