TrolMaster – Aqua-X Control Board 110V, 6 individual 110V controlled output (1.5A per outlet) for pump control

Description

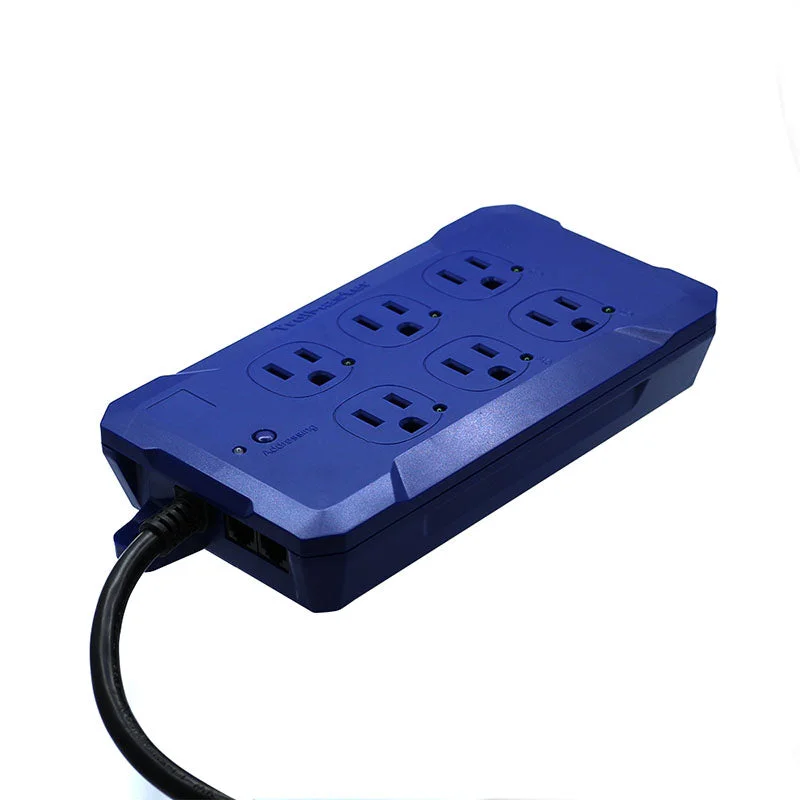

The OA6-110 control board is designed to control small 110V pump or solenoid valves (less than 1.5 amps). The OA6-110 has 6 separately controlled 120 volt outlets. Each has an LED indicator to show whether the outlet is On or Off.  Up to (5) of the OA6-110 modules can be connected to a single Aqua-x.

Features:

LED Power Indicator

 Addressing Button

 6 Individually-Controlled 110V Outputs

 Individual LED Indicator for Each Output

 Double RJ12 Cable Sockets for Easy Connectivity

Included In Box:

1 x 110V Control Board

 1 x 16ft RJ12 Cable

Technical Specifications:

Input Voltage:                                   120 VAC

Max Input Current: 9A

Max Output Voltage/Current:           120VAC/1.5A per Output

Working Environments:                   Temperature 32°-122°F, Humidity=90%

Packaging Dimensions:                   275mm(L) x 164mm(W) x 62mm(H)

Manual Link:
https:///PDFHtml/OA60-110.html
